Hot Runner Coil Heaters
Hot Runner Coil Heaters

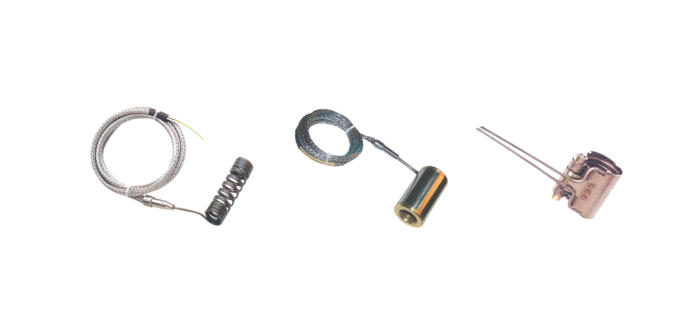

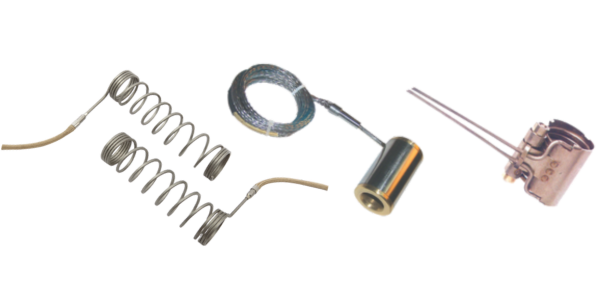

Elmec, a leading Hot Runner Coil Heater Manufacturer, engineers precision Hot Runner Micro Coil Heaters. Crafted with nickel-chrome resistance wire in chrome-nickel steel tubes filled with compacted MgO powder, these heaters ensure rapid and efficient heat transfer. Annealed for malleability, they can be bent into any shape. Our hot runner heaters, including those with built-in thermocouples and bushes, are meticulously designed with diverse cross-sections, inner brass, and outer stainless steel covers for optimal performance. The cross-sections we use are J and K types – (2.24.2) – (33).
Applications
- Moulds & Dies
- Manifolds
- Hot runner nozzles and spruce bushes
- Packaging machineries
- Injection moulding machine nozzle
Technical Specification And Tolerance
| Sheath Material | Cr Ni-Steel |
| Insulation Material | Mgo |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | + 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Connection Leads Option
PTFE Insulated nickel lead protected with thick silicon coated fibreglass sleeve
PTFE Insulated nickel lead protected with flexible stainless steel metal hose
PTFE Insulated nickel lead protected with flexible stainless steel metal hose
PTFE Insulated nickel lead protection
Typical Lead Orientation
